moulded brake blocks, moulded clutch facings, moulded press blocks, rigid moulded brake lining, moulded friction material snowman press blocks, wiper blocks, gear cut rings, press block inserts, fan clutch friction liners, moulded brake blocks


Our high performance non-asbestos moulded friction products, include semi metallic and organic formulations designed to satisfy diverse operating conditions.

custom moulded brake parts, flat sheet moulded friction, flat sheet friction, cone linings, moulded clutch linings

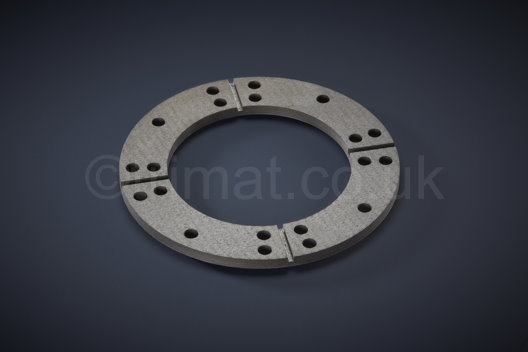

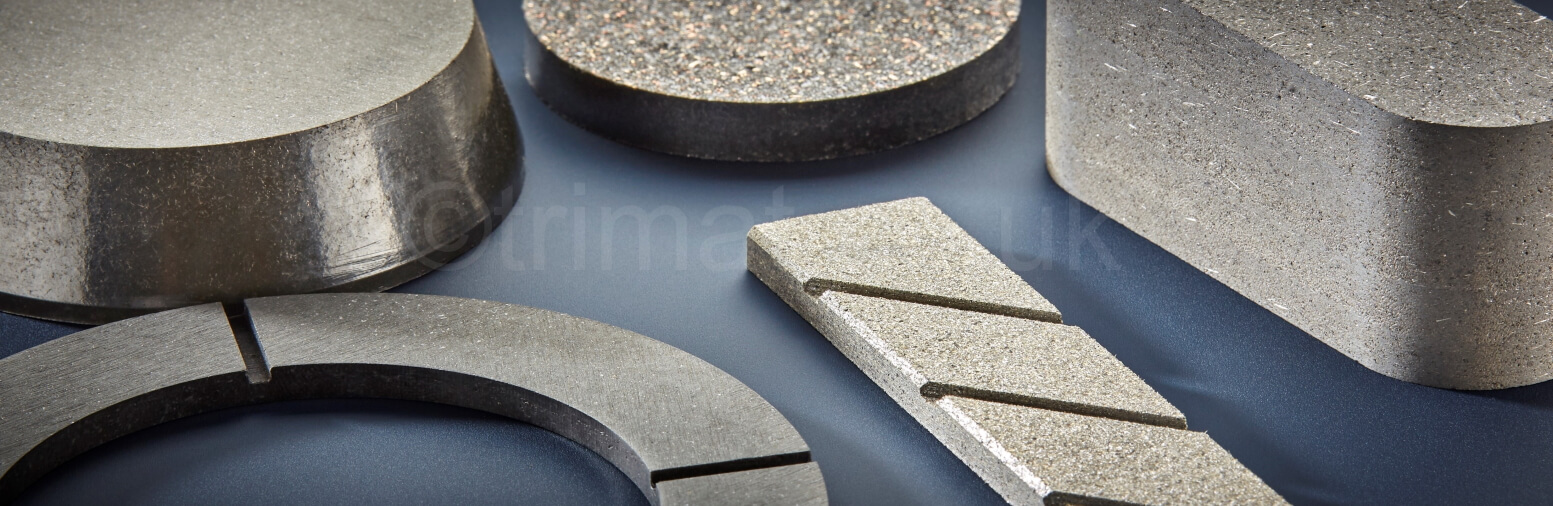

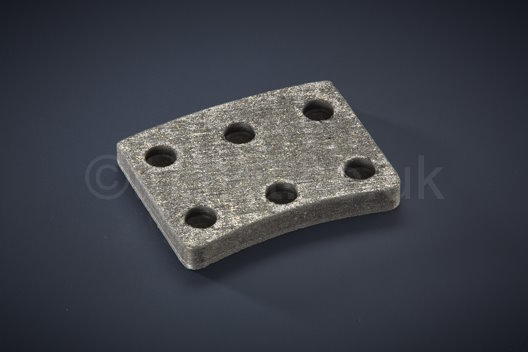

Press Moulded Friction Materials

Trimat manufacture a range of organic and semi-metallic press moulded friction products. The range is non-asbestos and covers a wide selection of performance characteristics from low coefficient products for tensioning devices, through to high friction, heavy duty materials used in aircraft braking systems.

The entire production process from chemical mixing to pressing and CNC machining is conducted in-house at our UK factory. The control of our ISO 9001:2015 manufacturing system ensures we provide high quality materials which demonstrate consistently impressive strength and durability.

custom moulded friction parts, custom moulded brake parts, friction block, non asbestos, asbestos free
fan clutch friction liners, disc brake pads, friction pads, integrally moulded disc brake pads, cone linings
gear cut friction facings, thick section friction sheet, friction discs, friction pucks, friction shims

Established upon the principles of Lean manufacturing and the 5S standard, Trimat is recognised for operating a well organised, clean and productive facility, synonymous with high quality products and services. Fundamental to our quality program is employee development throughout the business.

Products can be supplied in 600 x 600mm sheet form between 2-60mm thick, or alternatively materials can be manufactured to customer drawing as a finished brake component.

Below are listed our standard products, other qualities are available or can be developed to meet your particular requirements.


Quality

Reference
Coefficient
of Friction
Max Temp
Continuous
Max Temp
Intermittent

Data Sheet
MN1042Rigid Moulded0.15175°C350°CPDF Link
MN1046Rigid Moulded0.37300°C400°CPDF Link
MN1050Rigid Moulded0.44300°C400°CPDF Link
MN1056Rigid Moulded0.35300°C350°CPDF Link
MN1070Rigid Moulded0.46350°C500°CPDF Link
MN1081Rigid Moulded0.42250°C650°CPDF Link
MN1130Rigid Moulded0.51300°C350°CPDF Link
MN1185Rigid Moulded0.52300°C350°CPDF Link
MN2001Rigid Moulded0.50250°C350°CPDF Link
MN2221Rigid Moulded0.53250°C350°CPDF Link
