Our roll-formed flexible friction products are manufactured in a range of qualities, including semi metallic and semi-cured options available in rolls, sheets and finished parts.

roll formed friction sheet, roll formed friction materials, rubber brake lining, din spec linings, fan clutch linings

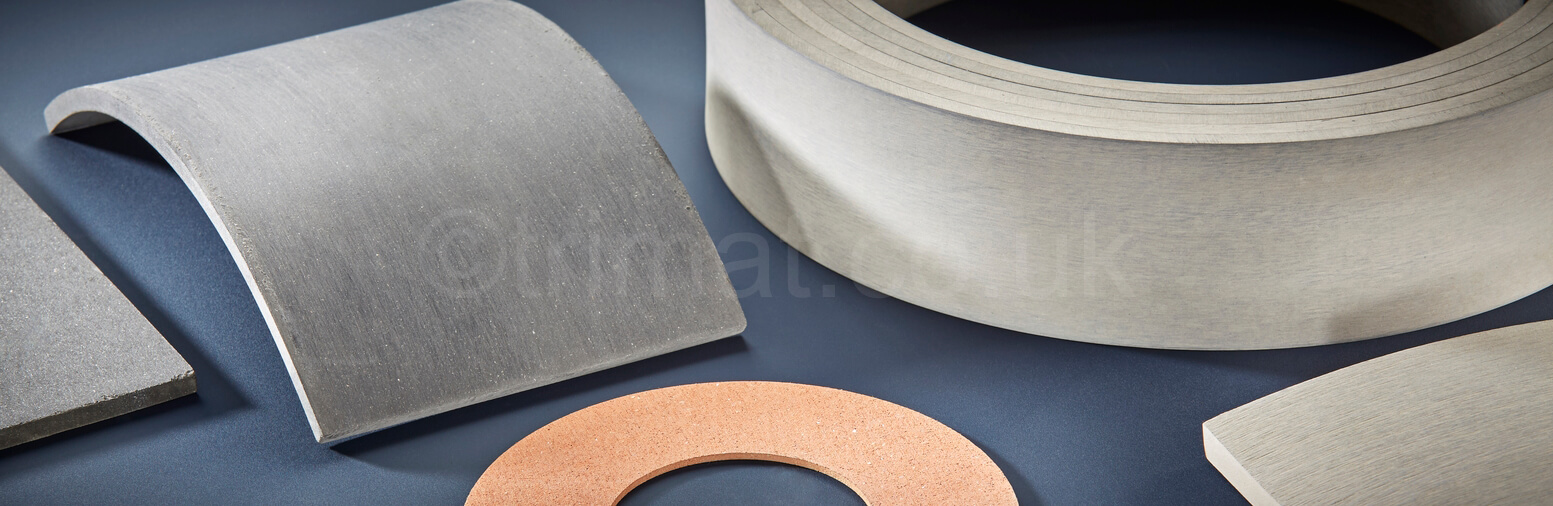

Roll Formed Flexible Friction Materials

Trimat manufacture a complete range of roll formed rubber based friction products, materials can be supplied in either flexible or rigid forms.

Semi-cured qualities are available ready for heat bonding to a desired radius or shape and products with rivet holding capacity are also available.

The Trimat range is non-asbestos and includes both non-metallic and metallic formulations offering a variety of friction levels and performance characteristics. Reliability and consistency are guaranteed thanks to over 20 years of manufacturing experience and the principal of using only the highest quality raw materials.

semi metallic flexible brake lining, semi cured brake linings, electromagnetic brake materials
wire backed brake lining, servo motor brake linings, red friction material, electromagnetic clutch materials
brake lining tape, brake linings for bonding, crane brake linings, non-asbestos flexible brake lining

Rolls are supplied up to 12.7mm thick and 200mm wide, alternatively flat sheets are manufactured up to 330mm wide. Products can also be supplied as rings, segments, radiused linings and cone linings to suit customer drawings.

Below are listed our standard products, other qualities are available or can be developed to meet your particular requirements.


Quality

Reference
Coefficient
of Friction
Max Temp
Continuous
Max Temp
Intermittent

Data Sheet
MR2740Fully Cured Flexible0.46250°C350°CPDF Link
MR7032Fully Cured Flexible0.41250°C300°CPDF Link
MR2210Fully Cured Rigid0.42250°C325°CPDF Link
MR2215Semi Cured Flexible0.42250°C325°CPDF Link
MR2220Semi Cured Flexible0.53250°C350°CPDF Link
